Everything You Need to Know about a Ford Focus Immobiliser Issues

Whether you can sort a Ford Focus immobiliser fault yourself comes down almost entirely to which generation you’re driving. Earlier models from the late 1990s and early 2000s, running the PATS 1 or PATS 2 system, can often be reprogrammed manually if you still have two working keys. Anything from around 2005 onwards uses tighter security that ties the key to the ECU, and Focus models from 2010 onwards generally need a licensed locksmith with dealer-level tools, not a DIY fix.

If you own a Ford Focus and are having trouble with your key fob or immobiliser, you’re not alone. Many Focus drivers encounter issues with programming keys, non-responsive buttons, or immobiliser faults that prevent the car from starting.

This guide covers everything you need to know, from how the key works to what can go wrong and how to fix it.

Our UK auto locksmith specialists are fully equipped and ready 24/7 to assist with any Ford Focus Immobiliser issue. Arriving within 30 minutes to get you back on the road

✅ Free call-outs

✅ ETA 30 Minutes

✅ One Year warranty

✅ Up to 50% Off Your 2nd Key

✅ On-the-spot Service

Call Us For Free Quote

02038809904

What our clients have to say about us

Ford Focus Won’t Start. What Could Be the Problem?

A Ford Focus is a dependable road companion, but it is a machine made up of hundreds of interrelated elements that, like any other machine, can fail to perform as intended. The most typical causes of a Ford Focus not starting are a dead 12v battery, a dead key fob battery, corrosion on the battery terminals, and other minor issues.

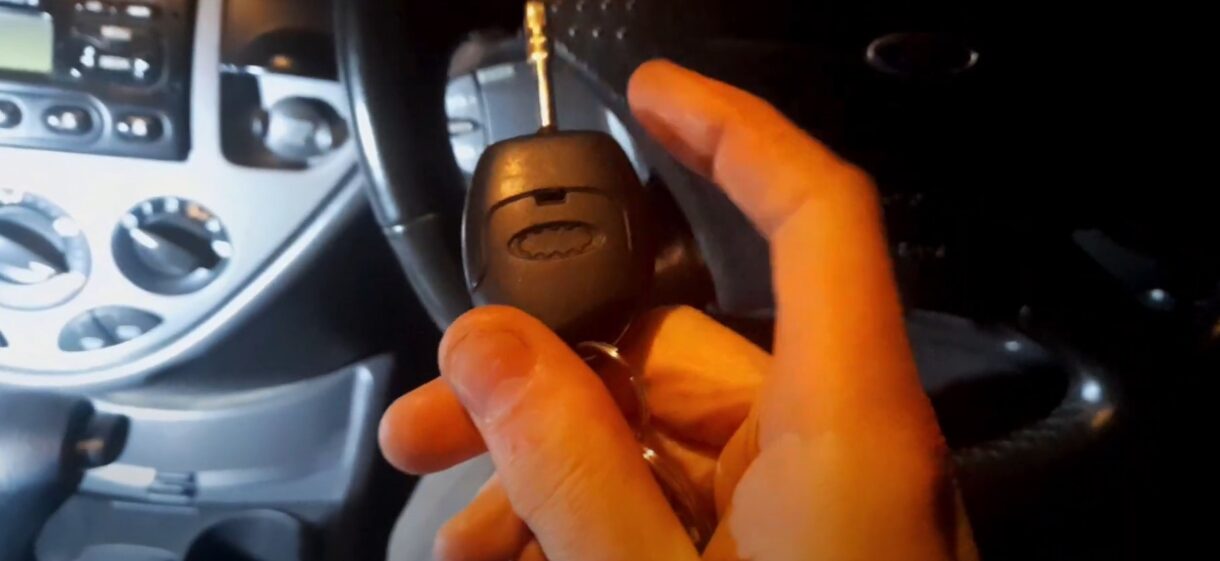

Ford Focus Immobiliser

If your Focus has a push start/stop button, a low-key fob battery could cause your vehicle to not start. You can still start your car because the battery is only used to send signals for locking and unlocking. The door no longer locks or unlocks at the touch of a button if the key fob battery is dead.

These doors must, therefore, be manually opened. A passive transponder controls the Ford Focus key programming Immobiliser. The transponder in the key is passive, which means it does not require its own power supply.

If your Focus only has a key fob with a start/stop button and no pace to enter a key, try positioning your key fob as close to the start/stop button as possible before starting the vehicle. However, if this doesn’t work, check your vehicle’s operating handbook for the specific location of the key fob, as it varies by model.

Tip: You can start your Focus by pressing the second key. It also removes any other issues with the original key, such as water damage.

If the key programming on your vehicle is stuck on, you may have to reboot the anti-theft system to get it to function again. This can be achieved by turning on the car with the keys that came with it, waiting for the antitheft light to turn off, and then repeating the process and starting the car.

Common Problems With the Key Fob

Circuit Board Failures

A frequent issue lies in the circuit board, which is embedded in the front part of the fob. If the board fails:

Buttons won’t respond or only work intermittently.
The car won’t recognize the signal for locking/unlocking.

Unlike other brands, Ford’s circuit board isn’t easily removable or replaceable as a separate module. If it goes bad, replacing the entire front shell of the fob may be necessary.

Button Wear

Interestingly, the buttons on the Mk1 Focus fobs are fairly durable. It’s rare for them to wear out completely—even after years of use. If your buttons aren’t working, it’s more likely a circuit board fault than physical wear.

Cosmetic Issues

The rear of the fob holds the battery, and many owners notice the Ford badge on the back tends to fall off. While this is common, it’s purely cosmetic and doesn’t affect functionality.

Immobiliser Chip: Handle With Care

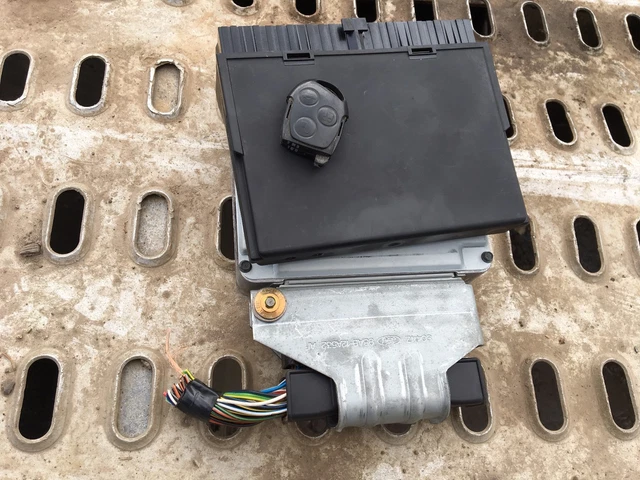

Inside the key fob is a transponder chip, which disables the immobiliser when the key is inserted into the ignition. It’s located near the top of the key shell.

This chip is very delicate. If you’re moving it into a new shell:

Be extremely careful not to damage it.
If broken, you’ll need a new chip, and only a professional auto locksmith with the right equipment can program it.

Ford Focus Key Programming Without a Scan Tool, Is It Possible?

If you’re trying to program a new key for your Ford Focus and don’t have a scan tool or diagnostic device, you’re probably wondering whether it’s even possible to do it yourself. The short answer? It depends on the model year.

DIY Key Programming for Older Models (1998–2004)

Some earlier Ford Focus models, particularly those with the PATS 1 or PATS 2 Immobiliser system, do allow manual programming—but only if you have two already-programmed working keys.

Steps:

Insert the first working key, turn to “ON” (not start), wait 5 seconds, then turn off.
Repeat with the second working key.
Within 10 seconds, insert the new key and turn it to “ON”.
Wait for the Immobiliser light to turn off this confirms successful programming.

⚠️ If you only have one key or no keys, this method will not work.

DIY Key Programming For Newer Models (2005 and Up)

From around 2005 onward including Mk2, Mk3, Mk4 models, Ford introduced tighter security. Manual programming is no longer supported. Keys must be:

Matched to the ECU
Programmed using dealer software (like Ford IDS) or a professional locksmith tool

How to Program a New Key Fob

Programming a new remote fob for a Ford Focus Mk1 is surprisingly straightforward. Here’s how to do it:

Insert the key into the ignition.
Turn it to position II (on) four times quickly.
Wait for a beep sound—this indicates the car is in programming mode.
Press either the lock or unlock button on the new key.
Wait for a second beep to confirm.
Remove the key.

If the car doesn’t respond with a beep:

It may be a faulty circuit board.
Less commonly, the GEM (General Electric Module) located near the passenger footwell could be the issue.

How to Reset Ford Focus Immobiliser?

Immobiliser issues are a common reason why your Ford Focus won’t start. If the Immobiliser warning light is flashing or the key is no longer recognized, you may be able to try a DIY reset, but again, results vary depending on the vehicle year.

Basic DIY Immobiliser Reset Steps:

This works mainly for older models:

Make sure your battery is fully charged.
Insert your key and turn it to the “ON” position.
Leave the key in this position for 10–15 minutes.
Turn the key off, wait a few seconds, and try to start the car.
This process may re-sync the Immobiliser temporarily or after a battery change.

Limitations of DIY Reset

Doesn’t work on newer Focus models (especially 2012+)
Won’t help if the ECU, Immobiliser box, or transponder chip is faulty
If you’ve changed the key or ECU, a professional reprogramming is needed

How Do I Program My Ford Focus Immobiliser?

For Ford models from 2010 onwards, programming a new key to the immobiliser system isn’t something most vehicle owners can do themselves. Due to enhanced security protocols, key programming typically requires specialist equipment and must be carried out by a certified auto locksmith. In the UK, this means the locksmith must be licensed, insured, and meet strict industry standards.

Attempting to program a key without the proper credentials can raise serious legal and technical issues. For your safety and peace of mind, it’s best to leave this task to a qualified professional.

To learn how to program a Ford key fob, follow these steps:

Close all of your vehicle’s doors. To unlock the vehicle, open the driver’s door and push the UNLOCK button.
Within 10 seconds, turn the ignition from OFF to RUN eight times. To enter programming mode, finish on RUN the last time.
The door locks should lock and unlock at this moment. Start afresh and spin the key quicker if they don’t lock and unlock.
To begin programming, press any button on your Ford remote within eight seconds. The door locks cycle once more, confirming that keyless entry has been programmed.
Turn the ignition off after you’ve programmed all of your Ford key fobs. To ensure that the programming is complete, the door locks should cycle one last time.

Troubleshooting Key & Immobiliser Issues

If your Ford Focus isn’t locking, unlocking, or starting, go through the following checklist:

✅ Check the circuit board in the key fob.
✅ Inspect the immobiliser chip for damage.
✅ Test the driver’s door lock motor, which can sometimes cause false faults.
✅ Look into the GEM module, though it’s rarely the root cause.
✅ Replace the key blade if it’s too worn to turn the ignition.

Some drivers tape a working transponder chip close to the ignition barrel and use a regular key blade as a workaround. It’s not ideal, but it can help in emergencies.

Where Can I Get a Replacement or New Car Key for My Ford?

If you’ve lost your Ford car key or need a spare, our expert auto locksmiths in London are here to help. We provide fast, affordable, and reliable Ford key replacement services across all London boroughs. Whether you drive a Fiesta, Focus, Mondeo, or any other Ford model, we can cut and program new keys on the spot no need to visit a dealership.

Our mobile service comes to you, saving you time and hassle. All our keys are fully compatible with your vehicle’s security system and come with a warranty for peace of mind.

Conclusion

We hope that this has given you an in-depth understanding of how your Ford Focus key programming Immobiliser works and how to replace it.

We’re more than happy to answer any questions that you might have.
